| Model specification |
WPF0608 |
WPF0810 |
WPF1012 |
WPF1214 |
|
| Working height |
mm |
8000 |
10000 |
12000 |
13800 |
| Maximum platform height |
mm |
6000 |
8000 |
10000 |
11800 |
| Maximum height when stowed (railing up) |
mm |
2150 |
2275 |
2400 |
2525 |
| Maximum height when stowed (rails folded) |
mm |
1690 |
1815 |
1940 |
2065 |
| Machine length |
mm |
2400 |
2400 |
2400 |
2400 |
| Overall width |
mm |
1150 |
1150 |
1150 |
1150 |
| Working platform size |
mm |
2270x1150 |
2270x1150 |
2270x1150 |
2270x1150 |
| Working extension size |
mm |
900 |
900 |
900 |
900 |
| Minimum ground clearance (closed state) |
mm |
110 |
110 |
110 |
110 |
| Minimum ground clearance (lifting state) |
mm |
20 |
20 |
20 |
20 |
| Wheelbase |
mm |
1850 |
1850 |
1850 |
1850 |
| Minimum turning radius (inner wheel) |
mm |
0 |
0 |
0 |
0 |
| Minimum turning radius (outer wheel) |
mm |
2100 |
2100 |
2100 |
2100 |
| Power source |
v/kw |
24/4 |
24/4 |
24/4 |
24/4 |
| Machine speed (closed state) |
km/h |
3.5 |
3.5 |
3.5 |
3.5 |
| Machine speed (lifting state) |
km/h |
0.8 |
0.8 |
0.8 |
0.8 |
| Ascent/descend speed |
sec |
40/50 |
40/50 |
70/80 |
70/80 |

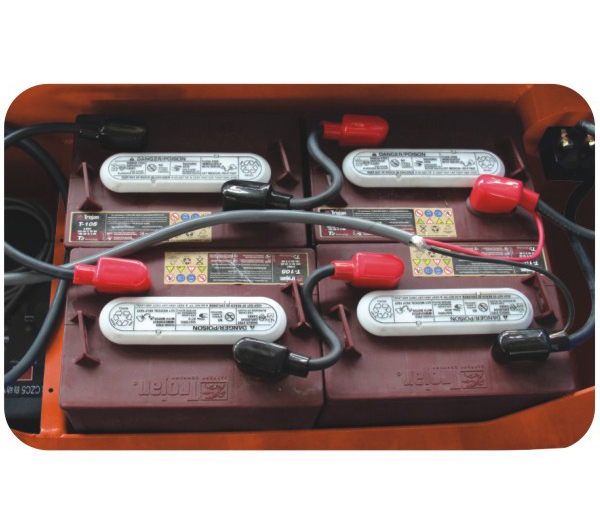

| Battery |
V/Ah |
24/200 |
24/200 |
24/270 |
24/270 |
| charger |
V/A |
24/30 |
24/30 |
24/30 |
24/30 |
| Maximum climbing ability |
% |
20 |
20 |
20 |
20 |
| Maximum allowable angle of work |
/ |
2-3° |
2-3° |
2-3° |
2-3° |

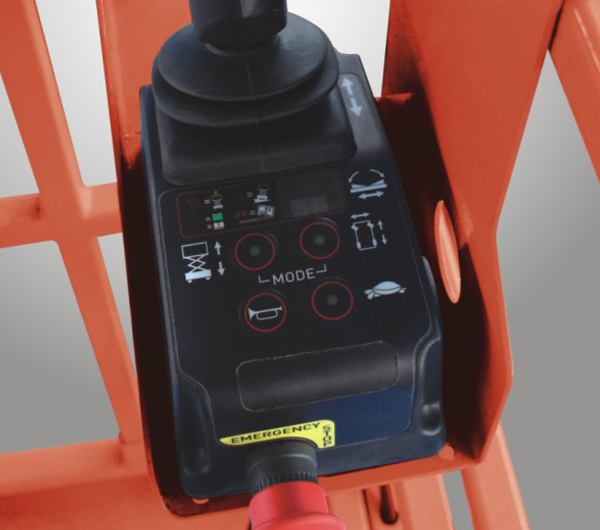

| way to control |
/ |

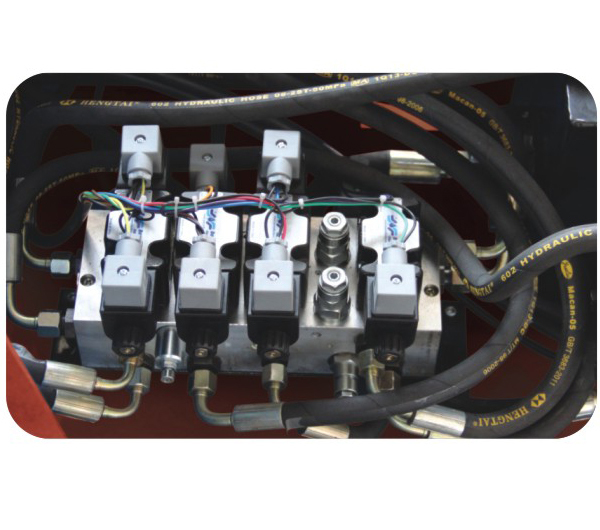

Electro-hydraulic proportional control | |||
| drive |
/ |
Double front wheels | |||
| Hydraulic brake |
/ |
Double rear wheels | |||
| Wheel size (solid without mark) |
/ |
Φ381x127 |
Φ381x127 |
Φ381x127 |
Φ381x127 |
| Platform rated load |
kg |
300 |
300 |
300 |
300 |
| Platform extension load |
kg |
113 |
113 |
113 |
100 |
| Total Weight |
kg |
1900 |
2080 |
2490 |
2760 |
